Hi Guys,
I have a question about Google structured data
When I create an Event I select fot the SEO "Content type for Google Structured Data" to be Event.
Where or how do I put the information about 'startDate' ,'name', 'location', 'endDate', 'description', 'performer', 'offers', 'image'
Does anybody know this? Thanks
I have a question about Google structured data
When I create an Event I select fot the SEO "Content type for Google Structured Data" to be Event.
Where or how do I put the information about 'startDate' ,'name', 'location', 'endDate', 'description', 'performer', 'offers', 'image'
Does anybody know this? Thanks
Please Log in or Create an account to join the conversation.
- JoomlaWorks
-
- Offline
- Admin
Less
More
- Posts: 6211
4 years 2 months ago - 2 years 9 months ago #174600
by JoomlaWorks
Fotis / JoomlaWorks Support Team
---
Please search the forum before posting a new topic :)
Replied by JoomlaWorks on topic Google structured data: how to add Event data
As it's also mentioned in the comments (tooltip) of the GSD type dropdown, some GSD types require additional code on your part. But it's not hard.
Here are the steps.
0. Upgrade to K2 v2.10.3 (dev) from getk2.org/downloads/?f=K2_Development_Release.zip - this is required to be able to get the raw URL from a "link" type extra field. This step will not be necessary once K2 v2.10.3 is officially released.
1. Assuming you have a specific category for events, first select the "event" GSD type for that category, in the 3rd tab of the category settings.
2. Create an override for item.php for that category. Copy the file /components/com_k2/templates/default/item.php into /templates/YOUR_TEMPLATE/html/com_k2/events/ (create the additional folders after /templates/YOUR_TEMPLATE/html/).

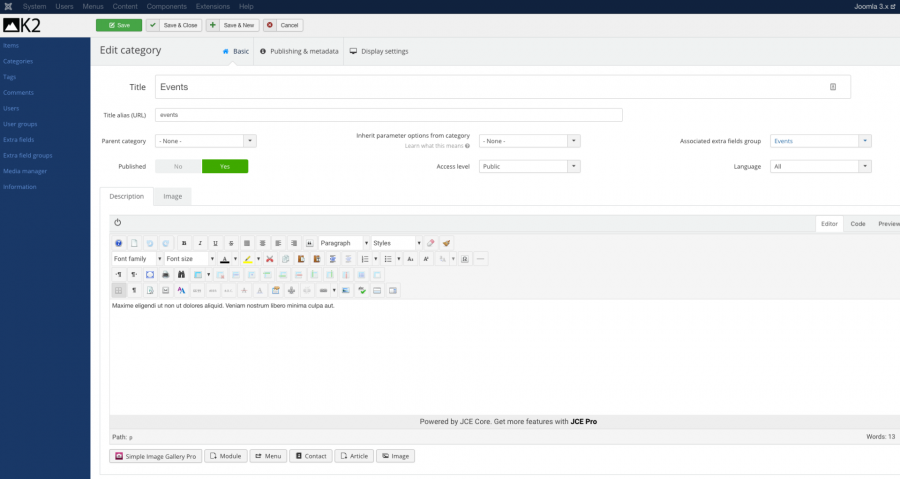

3. Go back to your events K2 category settings and select the new "events" sub-template (like so: jmp.sh/4TJsUWB). This will only override the item view. If you want to override the category listing as well, just copy all the files in /components/com_k2/templates/default/ into /templates/YOUR_TEMPLATE/html/com_k2/events/. More info on overriding K2 can be found here: getk2.org/documentation/tutorials/templating-with-k2-and-the-concepts-of-sub-templates
4. Create a new K2 Extra Fields Group and call it "Events".
5. Create extra fields for each of the GSD data you wish to add. According to developers.google.com/search/docs/data-types/event the bare minimum for a GSD event are "location" (object), "name" (we can use the K2 item's title here), "startDate" and optionally "endDate" and "offers" (object) as you requested. "description" and "image" already come with default K2 GSD. For any object element referenced, you'll have to create an extra field for each of its properties. So for "location" and given that GSD guidelines reference this:
"location": {
"@type": "Place",
"name": "Snickerpark Stadium",
"address": {
"@type": "PostalAddress",
"streetAddress": "100 West Snickerpark Dr",
"addressLocality": "Snickertown",
"postalCode": "19019",
"addressRegion": "PA",
"addressCountry": "US"
}
}
...you would need to add the following ("text" type) extra fields:
- Location Name (with extra field alias 'e_loc_name')
- Location Address (with extra field alias 'e_loc_addr')
- Location Town/City (with extra field alias 'e_loc_city')
- Location Postal Code (with extra field alias 'e_loc_pc')
- Location State/Province (with extra field alias 'e_loc_state')
- Location Country (with extra field alias 'e_loc_country')
Additionally, for the rest of the fields
- Start Date ("date" type extra field and alias 'e_start_date')
- End Date ("date" type extra field and alias 'e_end_date')
- Ticket Price ("text" type extra field and alias 'e_ticket_price')
- Ticket Purchase URL ("link" type extra field and alias 'e_ticket_link')
6. You will fetch each of these extra fields separately (as described here as well getk2.org/documentation/tips-a-tricks/display-single-extra-fields-anywhere-in-your-k2-content) and build your new GSD properties.

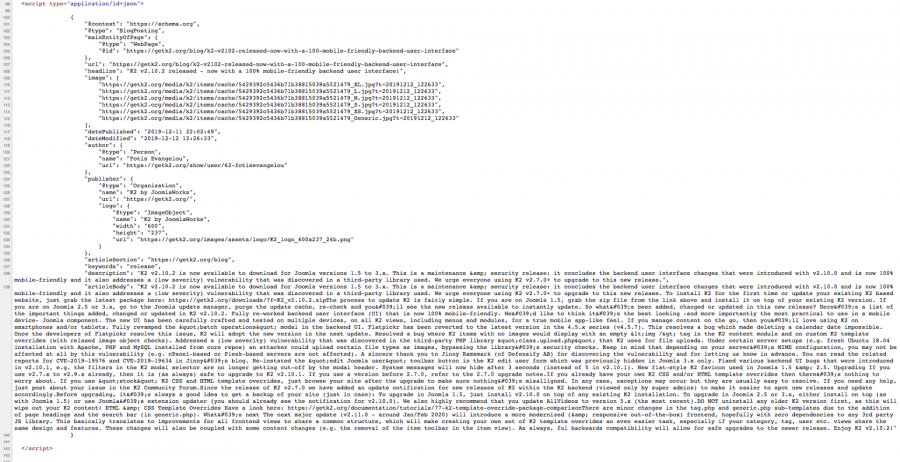

Your default K2 GSD look like this: jmp.sh/gmcOnu3 (or just do a view source on getk2.org/blog/k2-v2102-released-now-with-a-100-mobile-friendly-backend-user-interface).
We will change and extend these using the following PHP code added in your item.php override, right after the "defined('_JEXEC') or die;" part:
// Get current GSD
$getItemGSD = $this->params->get('itemGoogleStructuredData');
// Search and replace GSD
$document = JFactory::getDocument();
foreach ($document->_script as $type => $script) {
if ($type == 'application/ld+json' && $script == $getItemGSD) {
// Remove current GSD from the <head>
unset($document->_script);
$itemGSD = json_decode($getItemGSD);
// Remove any default K2 GSD properties we don't want for the GSD "event" type
unset($itemGSD->articleBody);
unset($itemGSD->articleSection);
unset($itemGSD->author);
unset($itemGSD->dateModified);
unset($itemGSD->datePublished);
unset($itemGSD->headline);
unset($itemGSD->keywords);
unset($itemGSD->publisher);
// Append new GSD data as object properties to '$itemGSD'
$itemGSD->location = new stdClass;
$itemGSD->location->{'@type'} = 'Place';
$itemGSD->location->name = $this->item->extraFields->e_loc_name->value;
$itemGSD->location->address = new stdClass;
$itemGSD->location->address->{'@type'} = 'PostalAddress';
$itemGSD->location->address->streetAddress = $this->item->extraFields->e_loc_addr->value;
$itemGSD->location->address->addressLocality = $this->item->extraFields->e_loc_city->value;
$itemGSD->location->address->postalCode = $this->item->extraFields->e_loc_pc->value;
$itemGSD->location->address->addressRegion = $this->item->extraFields->e_loc_state->value;
$itemGSD->location->address->addressCountry = $this->item->extraFields->e_loc_state->value;
$itemGSD->name = $this->item->title;
$itemGSD->startDate = $this->item->extraFields->e_start_date->value;
$itemGSD->endDate = $this->item->extraFields->e_end_date->value;
$itemGSD->offers = new stdClass;
$itemGSD->offers->{'@type'} = 'Offer';
$itemGSD->offers->price = $this->item->extraFields->e_ticket_price->value;
$itemGSD->offers->priceCurrency = 'USD'; // Use EUR or other currency here based on your needs
$itemGSD->offers->url = $this->item->extraFields->e_ticket_link->rawValue;
// Re-insert GSD data with new additions
$itemGSD = json_encode($itemGSD, JSON_PRETTY_PRINT | JSON_UNESCAPED_SLASHES);
$document->addScriptDeclaration($itemGSD, 'application/ld+json');
}
}
7. Now start filling up the event data (extra fields) in the K2 items of yours Events category.
In the end you'll see something like this on each event K2 item's page source: jmp.sh/qUvDXud (wherever you see "null" is where I just didn't add data).
8. Finally test one of your K2 items on: search.google.com/structured-data/testing-tool - this tool will tell you if you need to change anything or if some property is missing.
Here are the steps.
0. Upgrade to K2 v2.10.3 (dev) from getk2.org/downloads/?f=K2_Development_Release.zip - this is required to be able to get the raw URL from a "link" type extra field. This step will not be necessary once K2 v2.10.3 is officially released.
1. Assuming you have a specific category for events, first select the "event" GSD type for that category, in the 3rd tab of the category settings.
2. Create an override for item.php for that category. Copy the file /components/com_k2/templates/default/item.php into /templates/YOUR_TEMPLATE/html/com_k2/events/ (create the additional folders after /templates/YOUR_TEMPLATE/html/).
3. Go back to your events K2 category settings and select the new "events" sub-template (like so: jmp.sh/4TJsUWB). This will only override the item view. If you want to override the category listing as well, just copy all the files in /components/com_k2/templates/default/ into /templates/YOUR_TEMPLATE/html/com_k2/events/. More info on overriding K2 can be found here: getk2.org/documentation/tutorials/templating-with-k2-and-the-concepts-of-sub-templates
4. Create a new K2 Extra Fields Group and call it "Events".
5. Create extra fields for each of the GSD data you wish to add. According to developers.google.com/search/docs/data-types/event the bare minimum for a GSD event are "location" (object), "name" (we can use the K2 item's title here), "startDate" and optionally "endDate" and "offers" (object) as you requested. "description" and "image" already come with default K2 GSD. For any object element referenced, you'll have to create an extra field for each of its properties. So for "location" and given that GSD guidelines reference this:
"location": {
"@type": "Place",
"name": "Snickerpark Stadium",
"address": {
"@type": "PostalAddress",
"streetAddress": "100 West Snickerpark Dr",
"addressLocality": "Snickertown",
"postalCode": "19019",
"addressRegion": "PA",
"addressCountry": "US"
}
}
...you would need to add the following ("text" type) extra fields:
- Location Name (with extra field alias 'e_loc_name')
- Location Address (with extra field alias 'e_loc_addr')
- Location Town/City (with extra field alias 'e_loc_city')
- Location Postal Code (with extra field alias 'e_loc_pc')
- Location State/Province (with extra field alias 'e_loc_state')
- Location Country (with extra field alias 'e_loc_country')
Additionally, for the rest of the fields
- Start Date ("date" type extra field and alias 'e_start_date')
- End Date ("date" type extra field and alias 'e_end_date')
- Ticket Price ("text" type extra field and alias 'e_ticket_price')
- Ticket Purchase URL ("link" type extra field and alias 'e_ticket_link')
6. You will fetch each of these extra fields separately (as described here as well getk2.org/documentation/tips-a-tricks/display-single-extra-fields-anywhere-in-your-k2-content) and build your new GSD properties.
Your default K2 GSD look like this: jmp.sh/gmcOnu3 (or just do a view source on getk2.org/blog/k2-v2102-released-now-with-a-100-mobile-friendly-backend-user-interface).
We will change and extend these using the following PHP code added in your item.php override, right after the "defined('_JEXEC') or die;" part:
// Get current GSD
$getItemGSD = $this->params->get('itemGoogleStructuredData');
// Search and replace GSD
$document = JFactory::getDocument();
foreach ($document->_script as $type => $script) {
if ($type == 'application/ld+json' && $script == $getItemGSD) {
// Remove current GSD from the <head>
unset($document->_script);
$itemGSD = json_decode($getItemGSD);
// Remove any default K2 GSD properties we don't want for the GSD "event" type
unset($itemGSD->articleBody);
unset($itemGSD->articleSection);
unset($itemGSD->author);
unset($itemGSD->dateModified);
unset($itemGSD->datePublished);
unset($itemGSD->headline);
unset($itemGSD->keywords);
unset($itemGSD->publisher);
// Append new GSD data as object properties to '$itemGSD'
$itemGSD->location = new stdClass;
$itemGSD->location->{'@type'} = 'Place';
$itemGSD->location->name = $this->item->extraFields->e_loc_name->value;
$itemGSD->location->address = new stdClass;
$itemGSD->location->address->{'@type'} = 'PostalAddress';
$itemGSD->location->address->streetAddress = $this->item->extraFields->e_loc_addr->value;
$itemGSD->location->address->addressLocality = $this->item->extraFields->e_loc_city->value;
$itemGSD->location->address->postalCode = $this->item->extraFields->e_loc_pc->value;
$itemGSD->location->address->addressRegion = $this->item->extraFields->e_loc_state->value;
$itemGSD->location->address->addressCountry = $this->item->extraFields->e_loc_state->value;
$itemGSD->name = $this->item->title;
$itemGSD->startDate = $this->item->extraFields->e_start_date->value;
$itemGSD->endDate = $this->item->extraFields->e_end_date->value;
$itemGSD->offers = new stdClass;
$itemGSD->offers->{'@type'} = 'Offer';
$itemGSD->offers->price = $this->item->extraFields->e_ticket_price->value;
$itemGSD->offers->priceCurrency = 'USD'; // Use EUR or other currency here based on your needs
$itemGSD->offers->url = $this->item->extraFields->e_ticket_link->rawValue;
// Re-insert GSD data with new additions
$itemGSD = json_encode($itemGSD, JSON_PRETTY_PRINT | JSON_UNESCAPED_SLASHES);
$document->addScriptDeclaration($itemGSD, 'application/ld+json');
}
}
7. Now start filling up the event data (extra fields) in the K2 items of yours Events category.
In the end you'll see something like this on each event K2 item's page source: jmp.sh/qUvDXud (wherever you see "null" is where I just didn't add data).
8. Finally test one of your K2 items on: search.google.com/structured-data/testing-tool - this tool will tell you if you need to change anything or if some property is missing.
Fotis / JoomlaWorks Support Team
---
Please search the forum before posting a new topic :)
Last edit: 2 years 9 months ago by JoomlaWorks.
Please Log in or Create an account to join the conversation.
- JoomlaWorks
-
- Offline
- Admin
Less
More
- Posts: 6211
4 years 2 months ago #174601
by JoomlaWorks
Fotis / JoomlaWorks Support Team
---
Please search the forum before posting a new topic :)
Replied by JoomlaWorks on topic Google structured data: how to add Event data
Added as a tutorial on getk2.org with some additional context: getk2.org/documentation/tutorials/extending-k2s-google-structured-data-output-to-support-additional-content-types
Fotis / JoomlaWorks Support Team
---
Please search the forum before posting a new topic :)
Please Log in or Create an account to join the conversation.
- mofreestyle
-
- Offline
- New Member
Less
More
- Posts: 7
4 years 2 months ago #174690
by mofreestyle
Replied by mofreestyle on topic Google structured data: how to add Event data
I forgot to thank you for the clear tutorial on this matter Fotis!!!
I am going to work on it this weekend :-)
I am going to work on it this weekend :-)
Please Log in or Create an account to join the conversation.
- JoomlaWorks
-
- Offline
- Admin
Less
More
- Posts: 6211
4 years 2 months ago #174695
by JoomlaWorks
Fotis / JoomlaWorks Support Team
---
Please search the forum before posting a new topic :)
Replied by JoomlaWorks on topic Google structured data: how to add Event data
You're welcome :)
